Visualization

Visualization is the project's first priority. The turboswarm.viz module consumes a PsoResult and uses matplotlib. Because record_history=True by default, every run is ready to animate.

Note

viz imports matplotlib lazily, and the example scripts keep visualization optional (behind --plot / --animate), so the core runs without it.

Convergence curve

import matplotlib.pyplot as plt
import turboswarm as pso

r = pso.minimize("rastrigin", bounds=[(-5.12, 5.12)] * 2, seed=1)
pso.viz.plot_convergence(r)
plt.show()

Comparing variants

compare takes a dict {name: PsoResult} and overlays their convergence curves:

runs = {
    "inertia/global": pso.minimize("rastrigin", bounds=[(-5.12, 5.12)] * 2,
                                   velocity="inertia", topology="global", seed=7),
    "fips/ring": pso.minimize("rastrigin", bounds=[(-5.12, 5.12)] * 2,
                              velocity="fips", topology="ring", seed=7),
}
pso.viz.compare(runs)
plt.show()

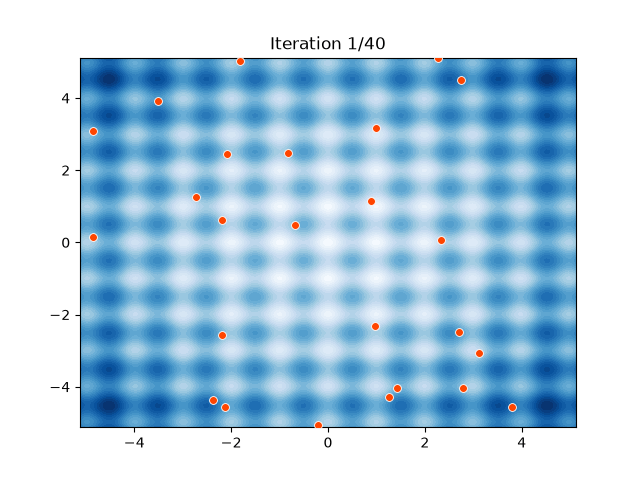

Animating the swarm (2D)

r = pso.minimize("rastrigin", bounds=[(-5.12, 5.12)] * 2, seed=1)
anim = pso.viz.animate_swarm(r, pso.benchmarks.rastrigin, [(-5.12, 5.12)] * 2)
plt.show()
# In a notebook:  from IPython.display import HTML; HTML(anim.to_jshtml())
# Save a GIF:      from matplotlib.animation import PillowWriter
#                  anim.save("swarm.gif", writer=PillowWriter(fps=10))

animate_swarm only supports 2D problems and requires record_history=True.

The GIF above is produced by scripts/make_swarm_gif.py.

3D landscape and swarm

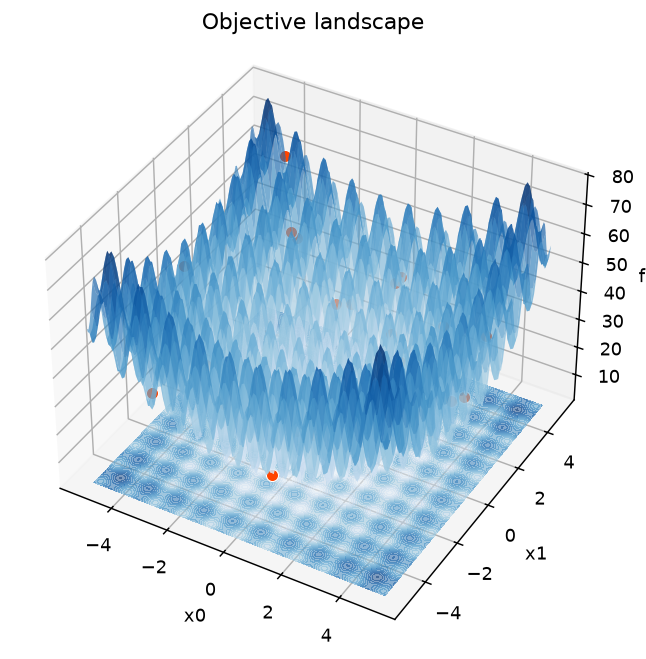

For a more striking view, render the objective as a 3D surface. Pass the final swarm to plot_surface to drop the particles onto the landscape:

r = pso.minimize("rastrigin", bounds=[(-5.12, 5.12)] * 2, seed=3)
pso.viz.plot_surface(pso.benchmarks.rastrigin, [(-5.12, 5.12)] * 2,
                     points=r.history[-1])
plt.show()

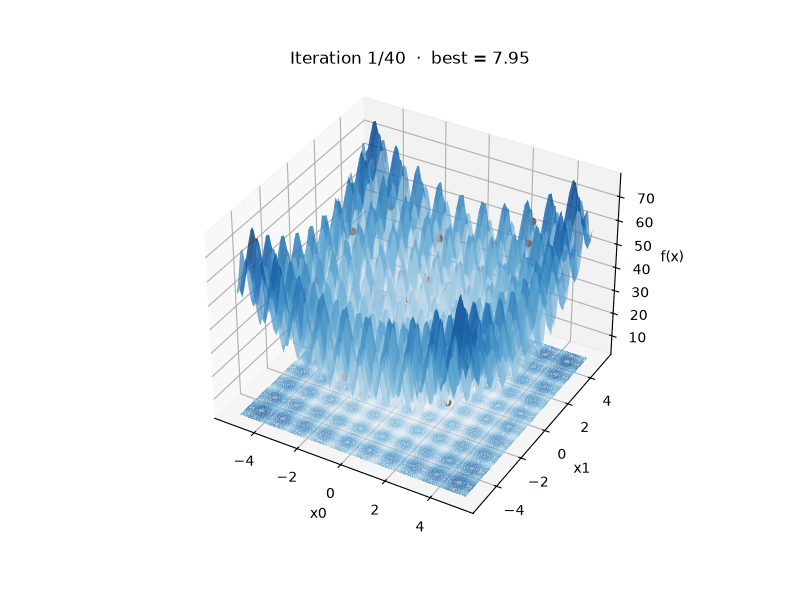

animate_swarm_3d turns it into an animation: the particles fly over the surface, the best-so-far is marked with a gold star, and the camera slowly rotates.

anim = pso.viz.animate_swarm_3d(r, pso.benchmarks.rastrigin, [(-5.12, 5.12)] * 2)
plt.show()
# Save a GIF:  anim.save("swarm3d.gif", writer="pillow", fps=10)

Both 3D helpers support 2D problems (the surface is f(x0, x1)); the animation needs record_history=True. Tune the look with cmap, resolution, elev/azim (static) or rotate=False (animation).

High-dimensional swarms (3D projection)

plot_surface / animate_swarm_3d draw a true landscape, so they are for 2D problems. For more than two dimensions, animate_swarm_projected projects each particle to 3D — with PCA (default, fit over the whole run so the view is stable) or by picking three dimensions — and colors particles by their objective value when you pass the function:

r = pso.minimize("rastrigin", bounds=[(-5.12, 5.12)] * 8, seed=2)   # 8-D

# PCA projection, colored by objective:
pso.viz.animate_swarm_projected(r, function=pso.benchmarks.rastrigin)

# or pick three dimensions explicitly:
pso.viz.animate_swarm_projected(r, dims=(0, 3, 5))

Interactive plots (Plotly)

For zoom/hover/pan in notebooks and on the web, the plotly_* helpers return a Plotly figure (install pip install turboswarm[plotly]):

pso.viz.plotly_convergence(r).show()
pso.viz.plotly_compare({"inertia": rA, "fips": rB}).show()
pso.viz.plotly_pareto(front).show()

Exporting the run (CSV / Parquet)

Export the per-iteration history or the convergence curve for analysis elsewhere (needs pip install turboswarm[pandas], or [parquet] for Parquet):

from turboswarm.integrations import pandas as ts_pandas

ts_pandas.to_csv(r, "history.csv")                       # one row per (iter, particle)
ts_pandas.to_csv(r, "convergence.csv", kind="convergence")
ts_pandas.to_parquet(r, "history.parquet")
# or get DataFrames directly: ts_pandas.history_dataframe(r) / convergence_dataframe(r)

Sensitivity plots

See Sensitivity analysis for viz.plot_sensitivity (a line for one swept hyperparameter, a heatmap for two).

Logging

turboswarm follows library conventions: it attaches a NullHandler and never configures logging itself. Turn on log output from your application:

import logging
logging.basicConfig(level=logging.INFO)
# viz then logs run comparisons and animation frame counts on the
# "turboswarm.viz" logger.

Ready-made demo

python examples/demo_viz.py        # compares variants, then animates
python examples/tour.py --animate  # full tour + optional animation
